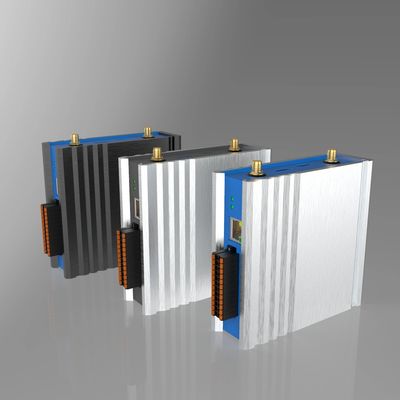

Bluetooth Mesh Edge Router - ER0
Features
An Edge Router with Bluetooth Mesh Technology and Modbus TCP Server & RTU Client-Server functionality.
Introduction
- Wireless Bluetooth 5
• Bluetooth Mesh Profile
• Support EnOcean Self-power Sensor & Switch Proxy
Wire
• IPv4.v6 Modbus TCP Server with Bluetooth Mesh Client Models Feature
Specifications
- External Antenna
- TX: Support to +13dBm, RF Connect for NFC
- Power Source for PoE & DC:14 ~ 32V
- Operation Temperature: –20 ~ + 75°C (non-condensedstate), Core module can work on -40 ~ + 105°C
- Bluetooth 5.3 Low Energy
- RF CERTIFICATION: NCC/CE/FCC/TELEC/RCM/Bluetooth LOGO
- Bluetooth Mesh / NLC Client Profile Models.
- Device Firmware Upgrade(DFU) for maintain or application usage.
- Dimension : 115(L)*110(W)*38(H) mm.
Bluetooth Mesh Edge Router - ODM
Features
An Edge Router with Bluetooth Mesh Technology and Modbus TCP Server & RTU Client-Server functionality.
Introduction
Wireless Bluetooth 5
• Bluetooth Mesh Profile
• Support EnOcean Self-power Sensor & Switch Proxy
Wire
• IPv4.v6 Modbus TCP Server with Bluetooth Mesh Client Models Feature！
Specifications
- External Ant
- TX: Support to +13dBm, RF Connect for NFC
- Power Source for PoE & DC:14 ~ 32V
- Operation Temperature: –20 ~ + 75°C (non-condensedstate), Core module can work on -40 ~ + 105°C
- Bluetooth 5.3 Low Energy
- RF CERTIFICATION: ＮCＣ/CE/FCC/TELEC/RCM/Bluetooth LOGO
- Bluetooth Mesh / NLC Client Profile Models.
- Device Firmware Upgrade(DFU) for maintain or application usage.
- Dimension : 95(L)*65(W)*26(H) mm.
- Any Customized Function Options.
